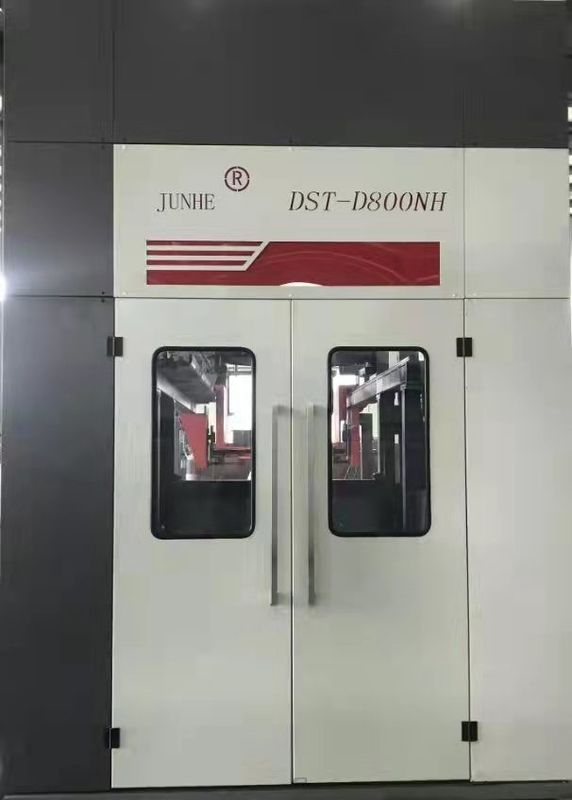

350r/Min Auto Dip Spin Double Basket Coating Machine
350r/Min Auto Dip Spin Double Basket Coating MachineDescription
Specifications
| Place of Origin: | Changzhou in china |
| Brand Name: | JUNHE |
| Certification: | ISO9001 TS16949 CE |
| Model Number: | DST-D800NH |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | LCL |
| Delivery Time: | One months after receipt of advance payment |
| Supply Ability: | 3 Sets per Month |
| Max Loading: | 200kg With The Basket |
| Tilting Obliquity: | 75° |
| Highlight: | zinc Double Basket Coating machine,350r/min Dip Spin Coating machine,Double Basket zinc coating equipment |
| Basket diameter | Ø800mm |
| Shortest production cycle | 160s |
| Vertical centrifugal speed | 4~350 r/min |
| Max tilting angle | 75° |
| Machine size | 3500×3500×4500mm |
| Suitable furnace | Junhe mesh belt curing furnace,stepping tray-type curing furnace |
| Suitable workpieces | ï¼550mm external and internal hexagon bolts,cross bolts,nuts,stamping parts |
| Zinc Flake Coating | Chrome Free Water Based Zinc Flake Coating Salt Fog Time 480 Hours PH ( 20â ) 5.0-8.0 |
| Zinc Flake Coating Machine | No Effusion Zinc Flake Coating Machine Aluminium Coating Machine With Single Basket |
350r/Min Auto Dip Spin Double Basket Coating MachineDescription
350r/Min Auto Dip Spin Double Basket Coating Machine
zinc Double Basket Coating machine
350r/min Dip Spin Coating machine
Double Basket zinc coating equipment
JUNHE®manual/auto dip spin double basket coating machine can meet the coating requirement of blind hole automotive fasteners,hardware parts, batch control,high production rate,it can be centrifuged horizontally and vertically at nearly 90 degree, safety and environmental friendly, prevent mixing materials,double basket,low operating cost, informatization,intelligent and IOT upgrade.Patent No.2019215906074 2019215905940 20192066474032019212924808 2021210792178 2021214748579Functional Proprty1,Module standardization: modular,standardized design,connect with electric cabinet,whole machine assembly,easy installation,intelligent selection,easy upgrade,matching with Junhe standard curing furnace.2,Wide range of coated parts: with automatic and manual loading function,small parts automatic loading,big parts manual loading,preventing bumps.3,High efficiency: two-mode centrifugation,single basket tilting with high-speed centrifugation,besides low-speed tilting turning function,add lateral high-speed centrifugation,coating layer surface uniform,reduce the effusion rate of blind hole parts,double basket design,improveefficiency.4,Excellent safety and environmental friendly: jacket centrifugal structure,no liquid splashing, integral enclosed design, centralized collection of exhaust air,suitable for water-base and solvent-base paint,moisture and explosion proof, modular optional.5,Excellent batch management: each batch of workpiece weighing according to the process requirements,the whole process automatic operation,can monitor the whole process,record optional.No risk of parts stuck.Technical ParameterBasket diameterØ800mmMax loading capacity200kg/basketShortest production cycle160sMax capacity4500kg/hVertical centrifugal speed4350 r/minHorizontal centrifugal speed4250 r/minMax tilting angle75°Suitable workpieces lengthï¼550mmMachine size3500×3500×4500mmTotal power≤29kwSuitable furnaceJunhe mesh belt curing furnace,stepping tray-type curing furnaceSuitable paintAll types water-base and solvent-base paintSuitable workpiecesï¼550mm external and internal hexagon bolts,cross bolts,nuts,stamping parts*The above performance parameters may vary due to manufacturing process,electrical selection,installation size workpiece shape and process selection.
JUNHE®manual/auto dip spin double basket coating machine can meet the coating requirement of blind hole automotive fasteners,hardware parts, batch control,high production rate,it can be centrifuged horizontally and vertically at nearly 90 degree, safety and environmental friendly, prevent mixing materials,double basket,low operating cost, informatization,intelligent and IOT upgrade.
Patent No.2019215906074 2019215905940 2019206647403
2019212924808 2021210792178 2021214748579
Functional Proprty
1,Module standardization: modular,standardized design,connect with electric cabinet,whole machine assembly,easy installation,intelligent selection,easy upgrade,matching with Junhe standard curing furnace.
2,Wide range of coated parts: with automatic and manual loading function,small parts automatic loading,big parts manual loading,preventing bumps.
3,High efficiency: two-mode centrifugation,single basket tilting with high-speed centrifugation,besides low-speed tilting turning function,add lateral high-speed centrifugation,coating layer surface uniform,reduce the effusion rate of blind hole parts,double basket design,improveefficiency.
4,Excellent safety and environmental friendly: jacket centrifugal structure,no liquid splashing, integral enclosed design, centralized collection of exhaust air,suitable for water-base and solvent-base paint,moisture and explosion proof, modular optional.
5,Excellent batch management: each batch of workpiece weighing according to the process requirements,the whole process automatic operation,can monitor the whole process,record optional.No risk of parts stuck.
Technical Parameter
*The above performance parameters may vary due to manufacturing process,electrical selection,installation size workpiece shape and process selection.
